Hot sale for Heat Shrink Tubing Fiber Optics Sleeves Protector supply to North Korea Manufacturer

Share to:
    Payment Type: T/T,Paypal,Western Union
    Incoterm: FOB,CIF,DDP
    Min. Order: 10000 Bag/Bags
    Delivery Time: 7 Days
  • Product Detail
  • Product Tags
  • Buyer Reviews

Sincerely look for Protection of the Fiber Optic Splices,Splice Protection Sleeves,PE Outer Tube Heat Shrink Sleeves. let's be double get.

Hot sale for Heat Shrink Tubing Fiber Optics Sleeves Protector supply to North Korea Manufacturer

Fiber Optics Sleeves Protector also named as Splice Protection Sleeves are used to secure connections in 19" rack fiber optical distribution panels as well as stand and wall box fiber optic splice closures. Stiffness of connection and quickness of assembly are the main advantages of this solution. Excellent climatic and thermal properties make it ideal for use in closed as well as open spaces. The main goals during design phase were: full Protection of the Fiber Optic Splices, stiffness of connection and short assembly time. They do not cause additional insert losses, and they offer protection against mechanical damage, pllution and weather conditions. In Chinese projection, the most popular style is this PE Outer Tube Heat Shrink Sleeves with 201 stainless steel rod strength menber.  We can offer full sizes for choice.



Features

Optic fiber heat shrinkable sleeves is used to protect the fiber optic joints. Move the heat shrink sleeves to the fiber optic connector, let the melting point of the heat shrinkable sleeves in the middle, gently straighten the fiber connector, put into the heater and heating. The EVA inner tube is melted, and the polyethylene pipe is tightly sleeved on the connecting optic fiber after shrinking. Since there is a stainless steel rod in the tube, it not only increases the tensile strength (1000~2300g). At the same time, can protective the fiber from being bending.

1, does not affect the characteristics of the fiber optic light guide.
2, the protection of the splice points, to improve the mechanical strength.
3, simple operation, reduce the risk of fiber damage during installation.
4, the transparent casing, so that the fiber connection status at a glance.
5, the sealing structure continue to have a good resistance to temperature, humidity performance.


Application scope:

Mainly used in fiber optic closures, fiber optic terminal boxes, ODF boxes, broadband network boxes, cable junction boxes ect. For communication products welding, special designed for FTTH project.

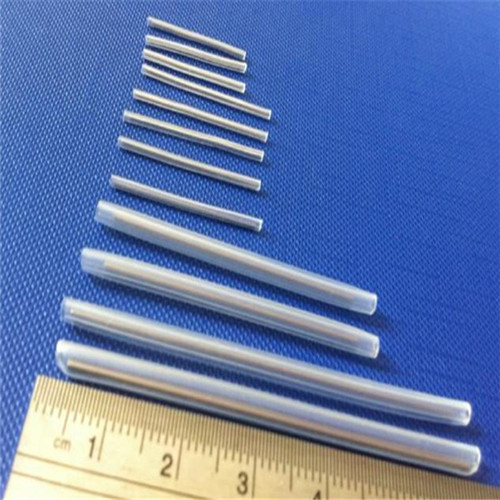

Fiber Optic Heat Shrink Sleeves with many sizes


Fiber Optic Protective Heat Shrink Sleeves


Model
Stainless Steel
Outer Tube
Inner Tube

Size after

shrinking

(mm)

O.D

(mm)

Length

(mm)

I.D.

(mm)

Thickness

(mm)

Length

 (mm)

I.D.

(mm)

Thickness

 (mm)

Length

(mm)

60*1.5*3.0
1.45±0.02
54.5 3.4±0.1
0.25±0.02
60 1.6±0.05
0.35±0.05
60 2.9±0.05
54*1.5*3.0
1.45±0.02
48.5 3.4±0.1
0.25±0.02
54 1.6±0.05
0.35±0.05
54 2.9±0.05
45*1.5*3.0
1.45±0.02
39.5 3.4±0.1
0.25±0.02
45 1.6±0.05
0.35±0.05
45 2.9±0.05
40*1.5*3.0
1.45±0.02
34.5 3.4±0.1
0.25±0.02
40 1.6±0.05
0.35±0.05
40 2.9±0.05

60*1.2*2.5
1.15±0.02
54.5 3.2±0.1
0.25±0.02
60 1.7±0.05
0.35±0.05
60 2.7±0.05
54*1.2*2.5
1.15±0.02
49 3.2±0.1
0.25±0.02
54 1.7±0.05
0.35±0.05
54 2.7±0.05
45*1.2*2.5
1.15±0.02
39.5 3.2±0.1
0.25±0.02
45 1.7±0.05
0.35±0.05
45 2.7±0.05
40*1.2*2.5
1.15±0.02
36 3.2±0.1
0.25±0.02
40 1.7±0.05
0.35±0.05
40 2.7±0.05

60*1.0*2.5
1.0±0.02
55 2.9±0.1
0.25±0.02
60 1.7±0.05
0.35±0.05
60 2.5±0.05
54*1.0*2.5
1.0±0.02
50 2.9±0.1
0.25±0.02
54 1.7±0.05
0.35±0.05
54 2.5±0.05
45*1.0*2.5
1.0±0.02
40 2.9±0.1
0.25±0.02
45 1.7±0.05
0.35±0.05
45 2.5±0.05
40*1.0*2.5
1.0±0.02
36 2.9±0.1
0.25±0.02
40 1.7±0.05
0.35±0.05
40 2.5±0.05


FAQ

1.When can I get the price?
We usually quote within 48 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
3.How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 2-4 days. The samples will be sent to you via express and arrive in 4-8 days. You can use your own express account or prepay us if you do not have an account.
4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally speaking, production lead time is within 2~4 weeks.
5.What is your terms of delivery?
We accept EXW, FOB, CIF, DDU, DDP etc. You can choose the one which is the most convenient or cost effective for you.
6.Terms of payment?
We accept payment as the following.
1).30% T/T deposit, 70% balance before delivery.
2).100% TT in advance.
3).western union

We believe that long time period partnership is a result of top of the range, value added services, rich expertise and personal contact for Fiber Optics Sleeves Protector. The product will supply to all over the world, such as: East Timor,Saudi Arabia,Tokelau. In the future we promise to keep provide the high quality and more cost-effective goods the more efficient after sales service to our all customers all over the world for the common development and the higher benefit.
